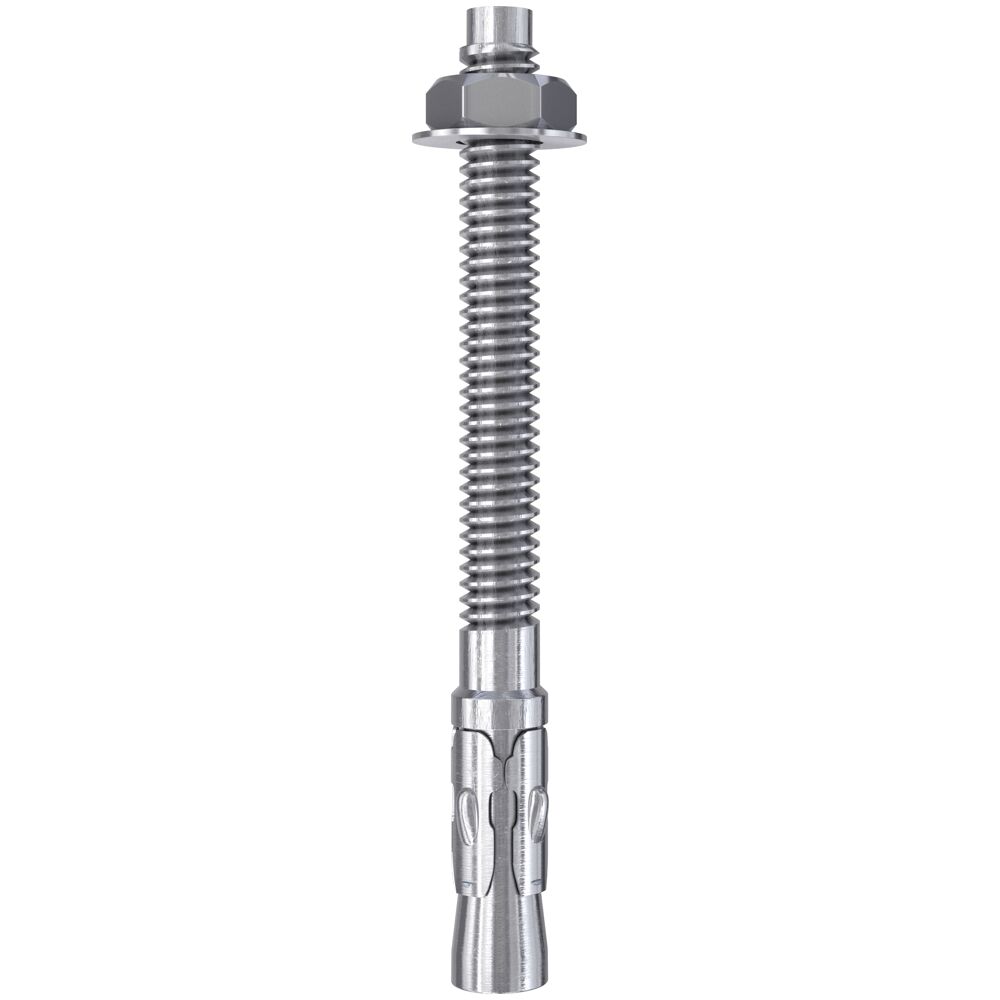

Bolt anchor FWA

The cost-effective fixation without approval - for use in non-cracked concrete More information ภาษาไทย Contact us

Product Detail

Advantages
- The standard anchorage depth achieves high load-bearing capacities. This means that fewer fixing points and smaller anchor plates are required.
- The reduced anchorage depth reduces the drill hole depth. This minimises the amount of time needed for installation whilst increasing flexibility.
- Available with metric and imperial threads

Applications
- Steel constructions
- Guard rails
- Consoles

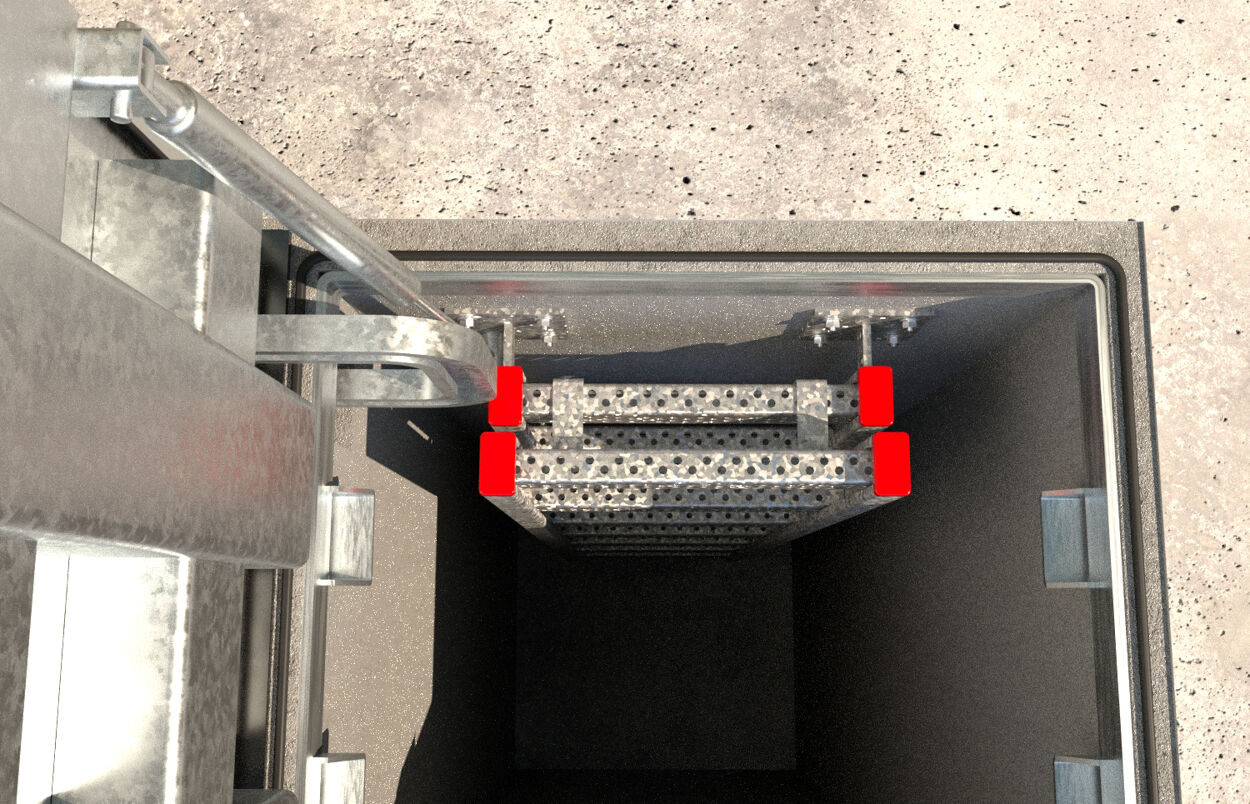

- Ladders
- Cable trays
- Machines
- Staircases
- Gates
- Façades

Building materials
- Concrete C20/25, non-cracked

Functionality
- The FWA is suitable for pre-positioned and push-through installation.
- Prior to installation, place the hex nut in the optimal position (the drive-in pin projects by approx. 3 mm out of the hex nut).

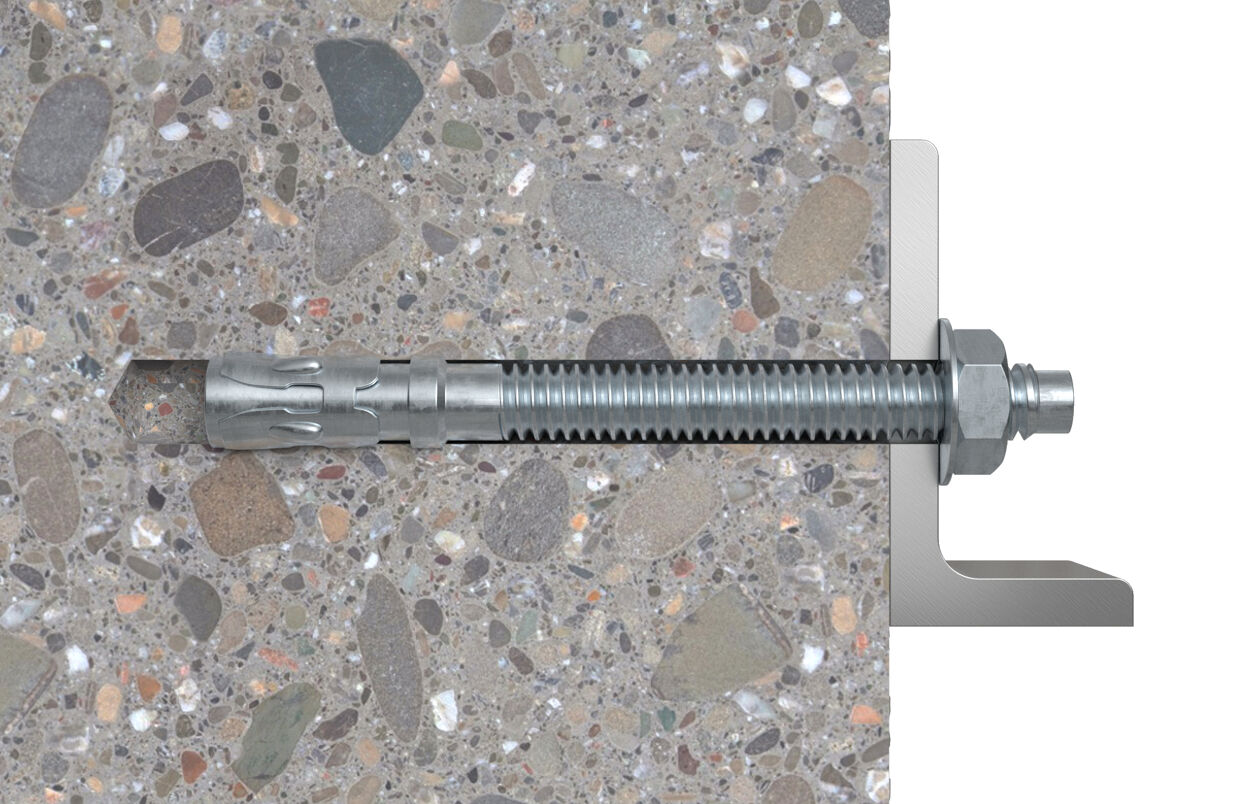

- When the torque is applied, the cone bolt is pulled into the expansion clip and expands it against the drill hole wall.
