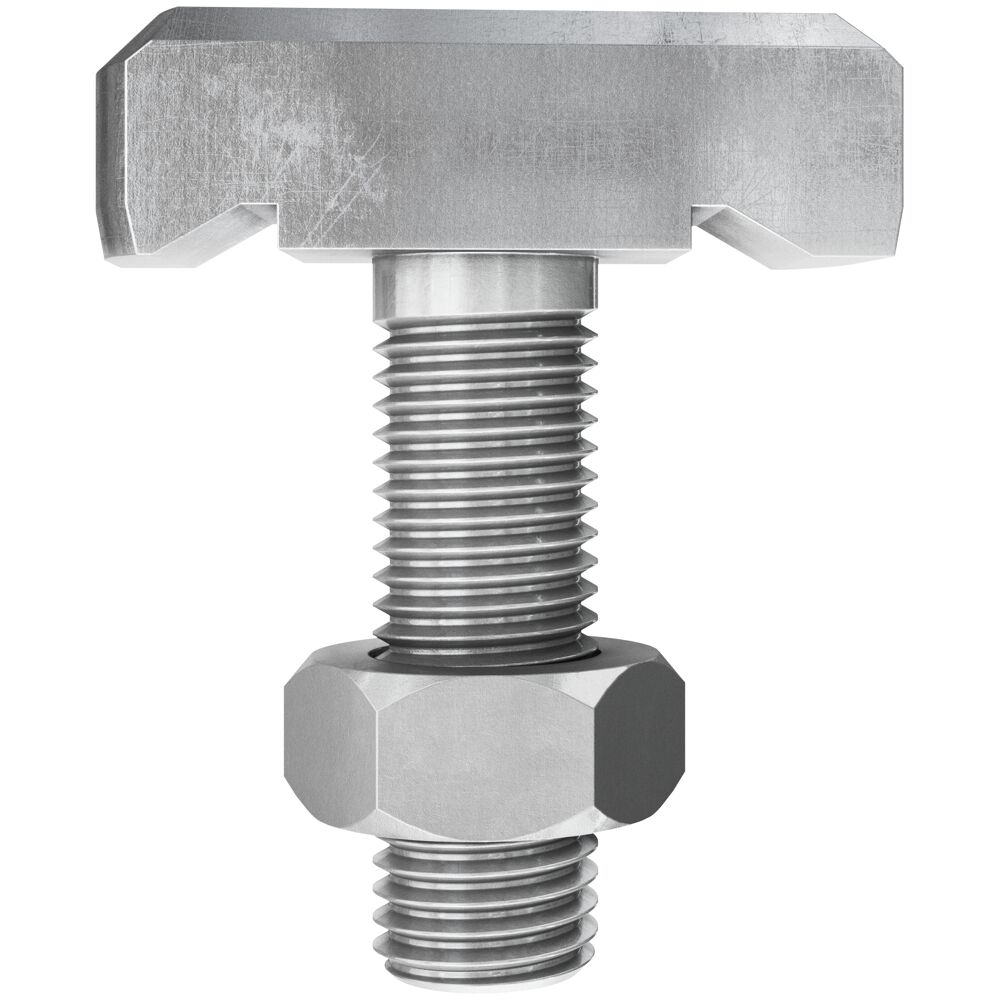

Channel bolt FBC

Standard channel bolt. Strong, safe and flexible.

Plain T-Bolt for use in combination with smooth cold-formed or smooth hot-rolled anchor channels. More information ภาษาไทย Contact us

Product Detail

Advantages
- FBC bolts with smooth underside fitting to Cast-in Channels with smooth channel lips.
- High load bearing capacity combined with flexibility.
- Two directional load capacity.
- Ideal prepositioned fixing solution, capable of covering on-site tolerances.
- Suitable for applications in cracked and non-cracked concrete.
- Permanently adjustable fixing solution.

Properties
- Hot-dip galvanised ≤ 50 µm acc. to EN ISO 10684:2004+AC:2009
- Steel grade 8.8 acc. to EN ISO898-1:2013
- Hexagonal nut acc. to EN ISO 4032:2012

Applications
- Suitable for all types of buildings or structures
- Facçades
- Prefabricated elements
- Railways
- Metro tunnels and stations
- Industrial applications

Building materials
- Concrete C12/15 to C90/105, cracked and non-cracked

Functionality
- FBC channel bolts can be variably set in the planned position of Cast -in Channels.
- They are easily fixed by turning them 90° clockwise and then applying the specified torque moment.

- Suitable for use in combination with hot-rolled and cold-rolled fischer Cast-in Channels FES-C, FES-H and FES-H-S.
