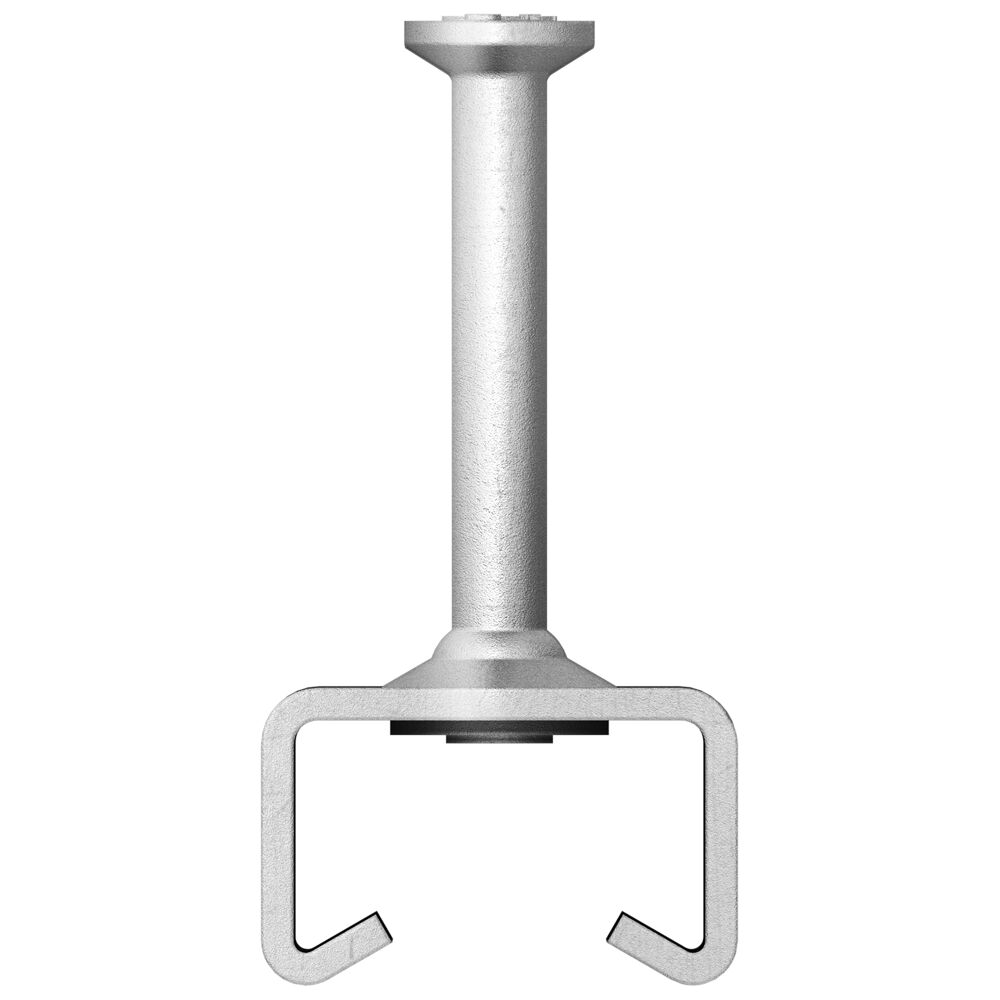

Cast-in Channel FES-C

Cold-formed anchor channel. Strong and safe.

Economical cold-formed anchor channels combine basic tension- and shearload capacity. More information ภาษาไทย Contact us

Product Detail

Advantages
- Economical cold-formed Cast-in Channels combining high loading capacity and safety.
- Two directional load capacity: tension and shear perpendicular to the channel axis.
- Ideal prepositioned fixing solution, capable of covering on-site tolerances.
- Suitable for applications in cracked and non-cracked concrete.
- Permanently adjustable fixing solution.

Properties
- Cold-formed
- Material: 1.0038, 1.0044 acc. to EN 10025:2004 or 1.0976, 1.0979 acc. to EN 10149:2013
- Hot-dip galvanised ≤ 50µm acc. to EN ISO 10684:2004+AC:2009

Applications
- Suitable for all types of buildings or structures

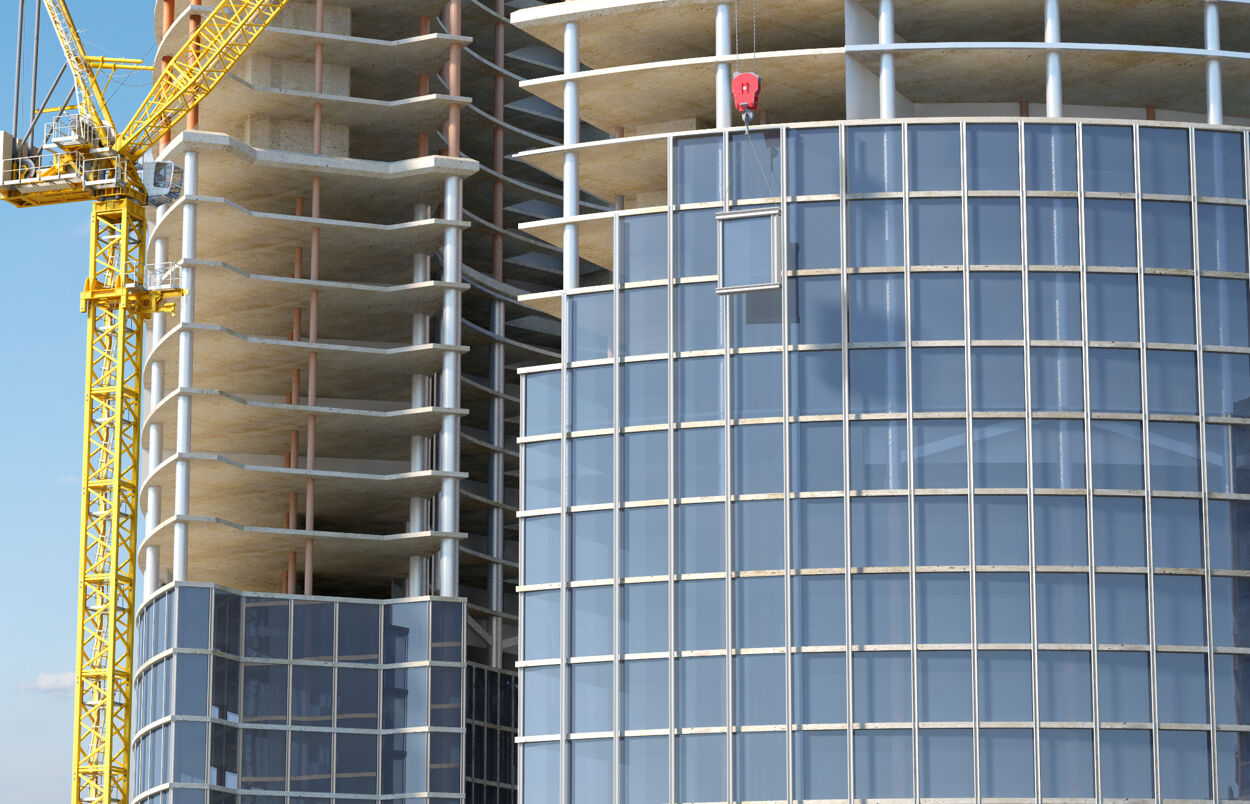

- Façades
- Prefabricated Elements
- Railways
- Metro tunnels and stations

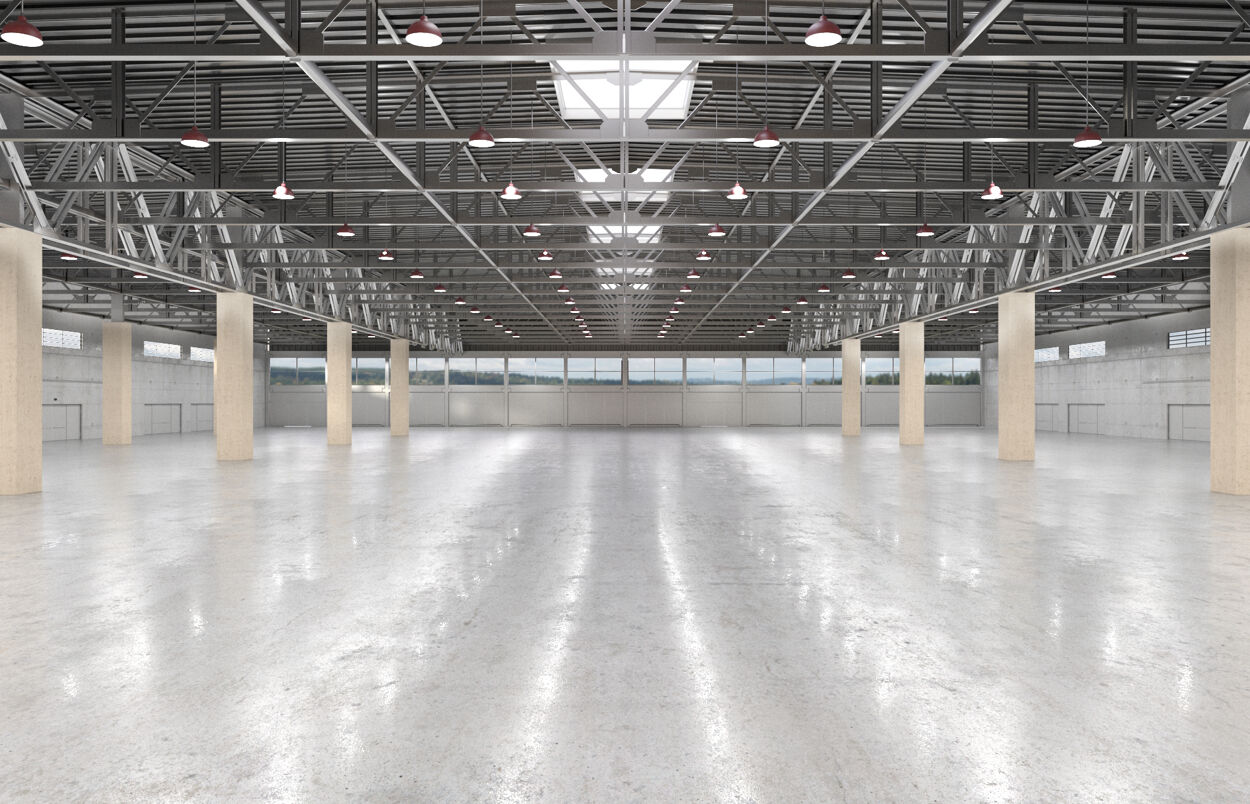

- Industrial applications

Building materials
- Concrete C12/15 to C90/105, cracked and non-cracked
Approval
- ETA-18/0862
- DoP No. 0228

Functionality

- Suitable for use in combination with plain T-Bolts FBC or serrated T-Bolts FBC-S. (however with no longitudinal load capacity).
